by Stefan Blechschmidt
About the author:
Being a trained electrician, I found myself in 1990 in front of a CAD workstation to develop a switch and control station. Obviously, I got infected by a then unknown 'virus', and that's just fine.
Translated to English by:
Jürgen Pohl <sept.sapins(at)verizon.net>
Automail for fli4l
Who is not using this one diskette router from http://www.fli4l.de/ ? Most likely everyone of its users knows
about the problem when the router is being used in dial-on-demand mode in an existing network system with internal mail server. When the router
establishes a connection the mail server should know about it, this would enable it to send and receive mail.

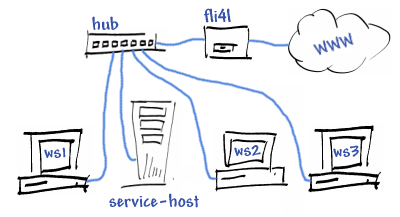

Our illustration shows the concept of the network which we are going to use as a example for this article. WS1 to WS3 represent workstations connected to the WWW through the router. The service-host is responsible for the internal and the external mail. Sending mail is being handled by MTA. Receiving with fetchmail and subsequent sorting with procmail. The mailboxes on the service host are provided to the workstations via POP3 or IMAP
If one of the workstations is establishing a connection to the WWW the service host does normally not notice it. It would be possible to instruct the service host with the help of a cron job to send or receive mail at specific times. More elegant would be to inform the service host when the connection is being established, enabling it to do the mail job.
Since the router is being run from a diskette, there is no complex script or program to control the mail server from the router.
While informing the service host about the connection, it should be possible to launch a request to start a process for mail to be sent or received.
For fli4l a program named wget is available , with the size of about 100 kB, it should fit easily on the diskette. With wget we can establish a connection to the service host at the same time when dialing. This will be possible by inetd opening a port on the service host, waiting for a connection from the router. With the connection a script will start additional processes to send and receive mail.
The script is written in Perl you may download it here (mailstart.pl.gz).
Dialing in activates the file .../opt/etc/ppp/ip-up. This is the right place to establish a connection to our service host. By adding the line:
wget -t 1 --spider MAILSERVER:PORT/xyz &> /dev/null
we are doing just that.
With the help of the super server inetd the program mailstart  is being activated. To make this happen we have to edit the files
In this file we assign the port which wget shall access. The line:
mailstart 4000/tcp # Mailstart
does accomplish that.
In this file we are defining which program should be started. inetd monitors its execution and logs this in /var/log/syslog.
mailstart stream tcp nowait root /usr/sbin/tcpd /root/bin/mailstart
is going to finish this step. The first name must be the same as noted in the file /etc/services.
Through variables the program can be adjusted to the particular server.
With the variable $protokoll we can define if the calls shall be logged. Setting the variable to 1 will log the calls in /var/log/mailstart.log. If the variable is set to 0 no log will be created.
Default: 1 create log
With this variable we can determine the target of the log.
Here we enter the name of the program which fetches the mail. To start that program the user must be root or the name which was entered into /etc/inetd.conf. If someone else wants to use the program the command has to start with su USER -c \"COMMAND PARAMETER\" . If the command is several words long it has to be set in quotation marks, also, it must be protected with \.
Default (one line): su postmaster -c \"fetchmail -t 40 -a -L /var/log/fetchmail/fetchmail.log -f /home/postmaster/.fetchmailrc\"
Here is the place for the program used to send email. To start that program the user must be root or the name which was entered into /etc/inetd.conf If someone else wants to use the program the command has to start with su USER -c \"BEFEHL PARAMETER\". If the command is several words long it has to be set in quotation marks, the command must be protected with \.
Default: sendmail -q
By the way, part of the program is a small POD documentation which provides a short description. You can get to the description with perdoc mailstart.
Prior to testing the super server needs to be restarted, /etc/init.d/inetd restart should do it. Now you can test with telnet localhost mailstart if the server responds . You should get a display similar to this.
Trying 127.0.0.1... Connected to localhost. Escape character is '^]'. HTTP/1.1 220 OK Date: Sun, 20 Jul 2003 10:45:46 GMT Server: mailstart/perl (sbsbavaria) Last-Modified: Sun, 20 Jul 2003 10:45:46 GMT Content-Type: text/txt Content-Length: 11 1234567890 Connection closed by foreign host.
Well, that's it. I hope you are getting the desired result from my
description. If that's not the case we do have a problem.
- You, because it doesn't work.
- I, because I was not able to give a decent description:-).
